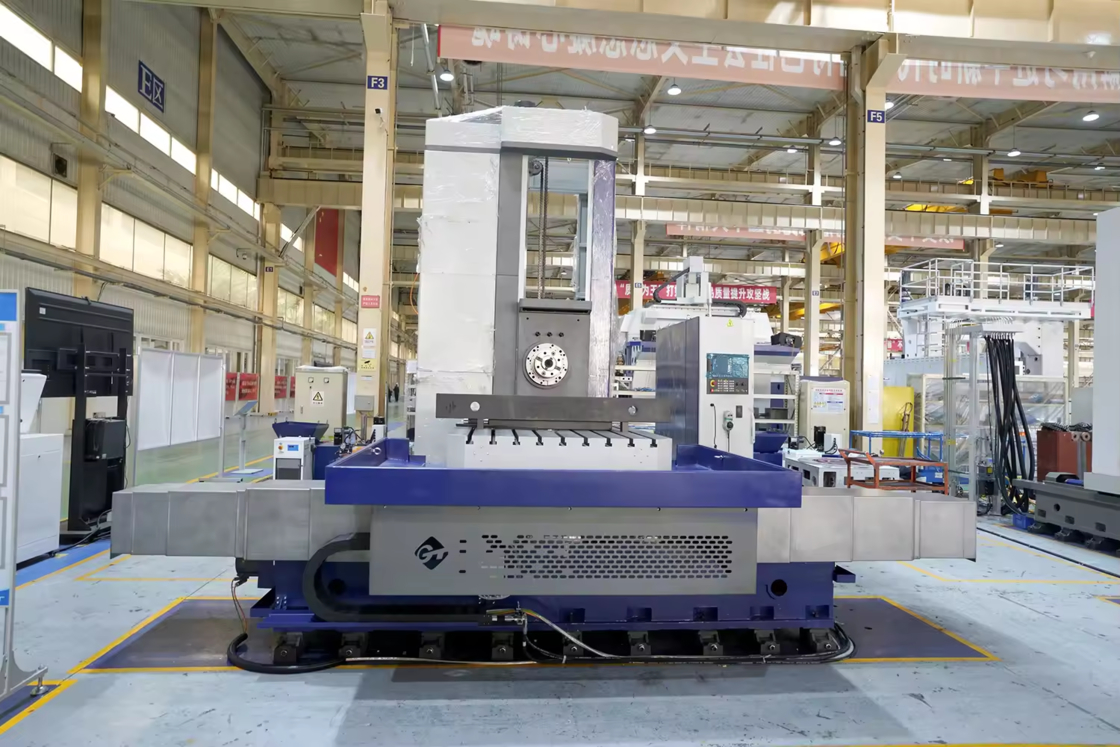

SMTCL PBC130rp Powerful CNC Horizontal Milling And Boring Machine CNC Boring Milling Machine

ブランド名: SMTCL
モデル番号: PBC130回転
原産地: 中国
認定: CE ISO certification
最低注文数量: 1
供給能力: 月額50セット
タグ

数値表示装置の横のボーリング機械

800r/min床のボーリング機械

ISOの横のボーリング機械

製品詳細

ブランド名: SMTCL モデル番号: PBC130回転
CNCかどうか: CNC キーワード: 横軸のCNCフレーシング掘削機
スピンドル速度: 10〜1500回転/分 仕事台次元: 2000×2000ミリ
作業台の最大負荷: 10/15/20/25/30 トン 縦移動 X 作業台: 2500/3000 mm
垂直移動 Y 頭部: 2000/3000/3500/4000 mm 柱の縦方向の移動z: 2000/2500 mm
ラム移動 V: 1000 mm スピンドル移動 W: 800 mm
ハイライト

integrated steel-inserted guide rail

,

square ram

,

High rotary speed and large torque

製品説明

SMTCL PBC130rp Powerful CNC Horizontal Milling And Boring Machine CNC Boring Milling Machine 0

Product Description:

SMTCL PBC130rp Powerful CNC Horizontal Milling And Boring Machine CNC Boring Milling Machine
The powerful CNC horizontal milling and boring machine is suitable for parts with a wide range of deep hole and cavity, and it is widely used in general machinery, ships, engineering machinery, aerospace and other industries.
Structural features:The machine tool is in a structure of T-shaped layout and square ram arranged in the headstock.
Basic parts:cast with high-strength cast iron material and resin sand process, ram is made of high-strength ductile cast iron.
Spindle group:High rotary speed and large torque, homemade headstock is supported by precision imported bearings.
Guide rail:X-axis, Y-axis and Z-axis are equipped with the integrated steel-inserted guide rail
Drive:The X-axis, Y-axis, Z-axis, V-axis and W-axis adopt servo motor to drive the ball lead screw via the reducing mechanism, and the B-axis is the classic double worm gear & worm structure.

Product Features:

1,Powerful Dynamic Performance: Boring bar diameter of 130mm, milling spindle power ranging from 41 to 49kW, and maximum torque of 3600 Nm, capable of handling various high-intensity cutting operations.​
2,Wide Machining Range: X-axis travel offers multiple specifications, optional from 2000mm to 4000mm; Y-axis travel ranges from 2500 to 3000mm; Z-axis travel ranges from 2000 to 2500mm. The maximum worktable load capacity reaches 30,000kg, suitable for large and complex workpieces.​
3,Precise Motion Control: X, Y, and Z axes all adopt hard rails, matched with ball screws, with a rapid traverse speed of 6m/min, ensuring accurate positioning, stable operation, and strong rigidity.​
4,Rich Machining Functions: Equipped with multiple machining capabilities including boring, milling, drilling, reaming, counterboring, and turning. The B-axis rotates 360° to realize multi-sided machining, and supports multi-axis linkage to meet the needs of complex contour machining.​
5,Flexible Configuration Options: Optional Fanuc or Siemens CNC systems (e.g., SIEMENS 828D). Accessories such as CNC faceplates can be equipped on demand to expand the machine's machining process scope.



Product Details:

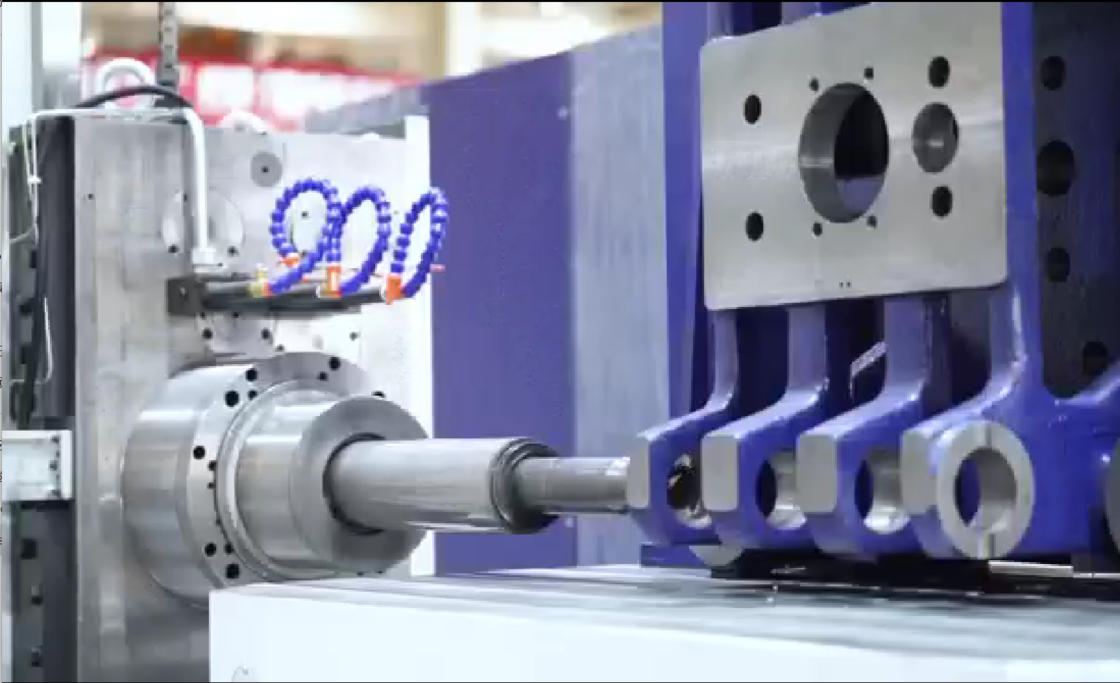

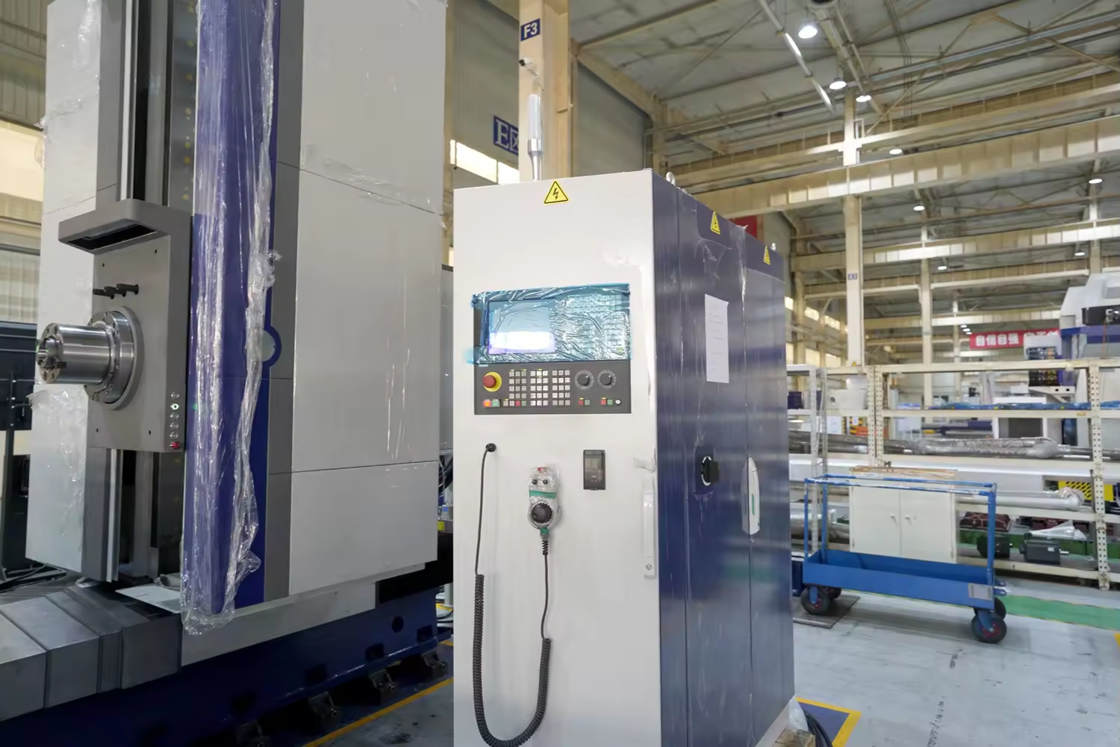

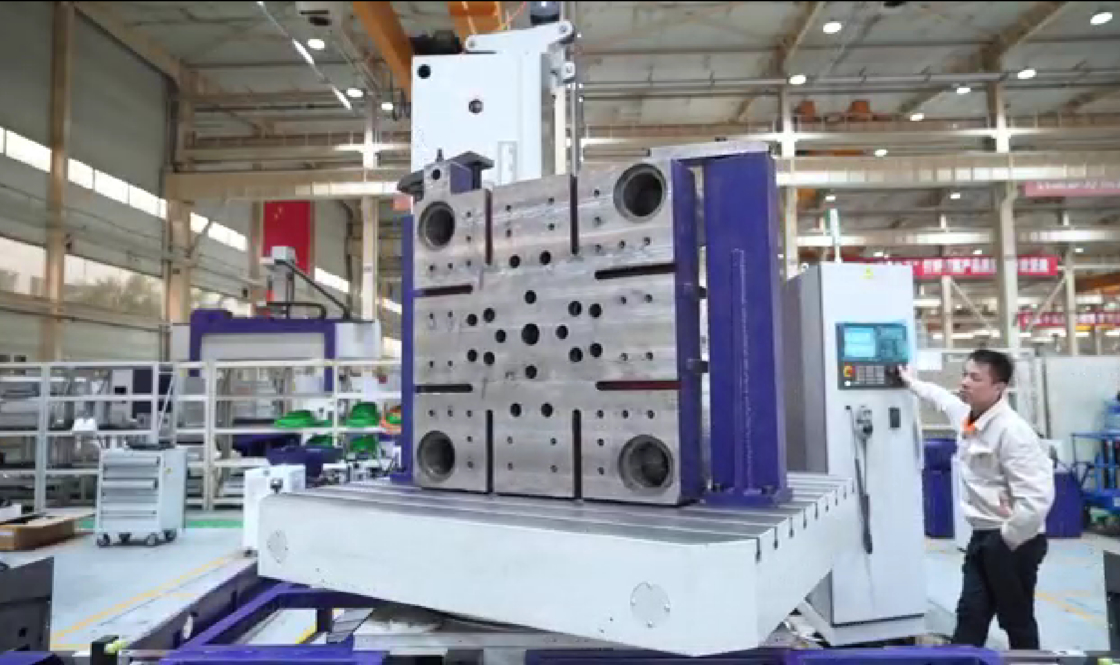

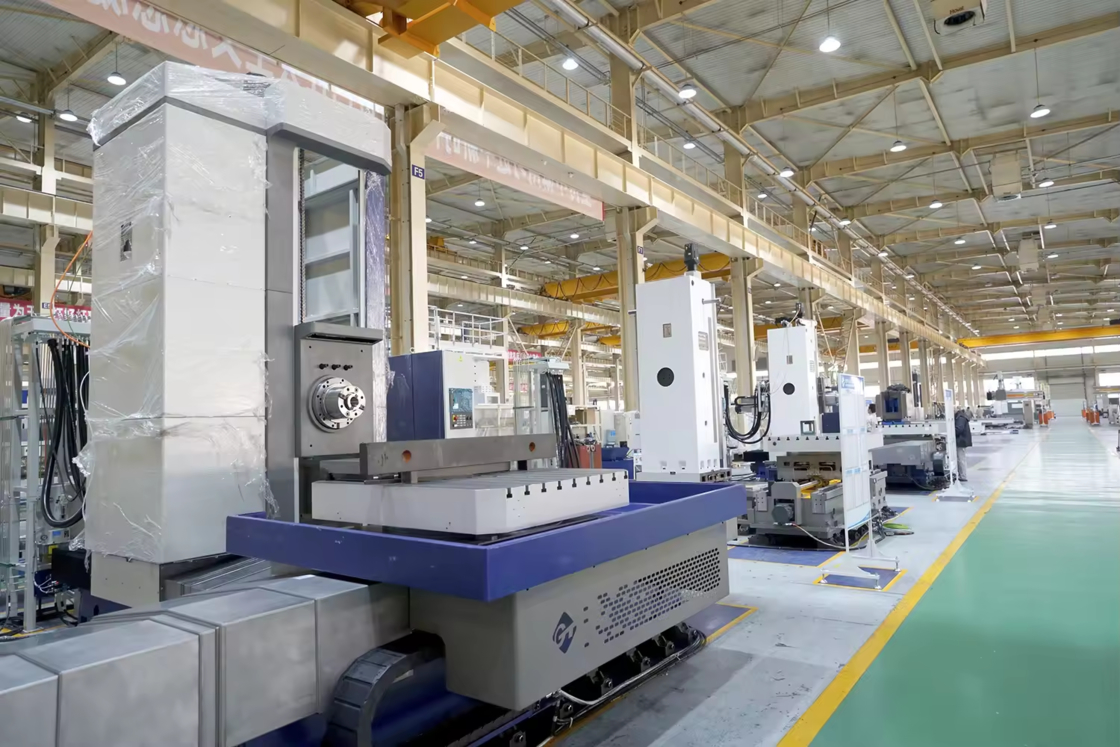

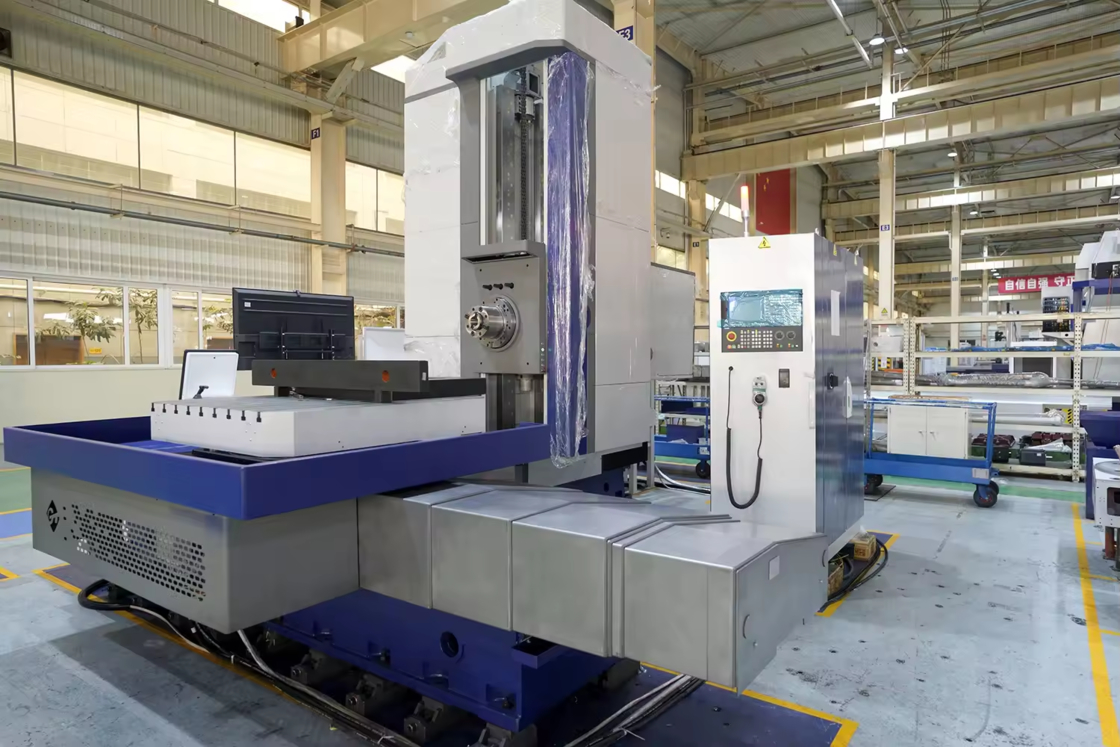

SMTCL PBC130rp Powerful CNC Horizontal Milling And Boring Machine CNC Boring Milling Machine 1SMTCL PBC130rp Powerful CNC Horizontal Milling And Boring Machine CNC Boring Milling Machine 2SMTCL PBC130rp Powerful CNC Horizontal Milling And Boring Machine CNC Boring Milling Machine 3SMTCL PBC130rp Powerful CNC Horizontal Milling And Boring Machine CNC Boring Milling Machine 4SMTCL PBC130rp Powerful CNC Horizontal Milling And Boring Machine CNC Boring Milling Machine 5SMTCL PBC130rp Powerful CNC Horizontal Milling And Boring Machine CNC Boring Milling Machine 6SMTCL PBC130rp Powerful CNC Horizontal Milling And Boring Machine CNC Boring Milling Machine 7SMTCL PBC130rp Powerful CNC Horizontal Milling And Boring Machine CNC Boring Milling Machine 8

Product Paramenters:
ltems
Unit
PBC 130rp
PBC 160rp
Workbench dimension
mm
10T:2000×2000；15T:2000×2000；20T:2000×2500；25T:2000×2500；30T:2500×3000
Maximum load of workbench
T
10/15/20/25/30
Spindle diameter
mm
φ130
φ160
Spindle speed
r/min
10-1500
Section area of ram
mm
480×480
Tool shank specification

JT50/BT50
Power of main motor
kW
41/49
60/69
Maximum torque of spindle
Nm
3000/3600
4400/5000
X-axis stroke
mm
10T:2000/3000/3500/4000；15T:2000/3000/4000
20T/25T/30T:3500/4000
Y-axis stroke
mm
2500/3000
Z-axis stroke
mm
2000/2500
W-axis stroke
mm
800
V-axis stroke
mm
1000
Feeding speed
X,Y,Z
mm/min
1-6000
V,W
mm/min
1-3000
B
r/min
0-1
Rapid speed
X,Y,Z
m/min
6
V,W
m/min
3
B
r/min
1
Positioning accuracy
X,Y,Z
mm
X:0.02/0.015(grating scale)
Y/Z:0.025/0.02(grating scale)
V
mm
0.025/0.015(grating scale)
W
mm
0.025
B
''
8,4×90°；6
Repositioning accuracy
X,Y,Z
mm
0.012
V
mm
0.015
W
mm
0.015
B
''
6
CNC system


SIEMENS 828D
SIEMENS 828D
Standard configuration:
SIEMENS 828D
Cooling and chip removal
Centralized lubrication
Headstock oil cooler
Imported spindle bearings
Spindle blowing function
Imported ball lead screw
B-axis circular optical grating
Workbench water tray
Y-direction armor protection
Guide rail protection
Operator protection
Water gun/air gun
Headstock balancing mechanism
Optional configuration:
Chain-type tool magazine
Accessory milling head
Workbench area protection
4-axis grating ruler
Spindle internal cooling
Adaptive control
Tool load abnormality detection
Energy saving package
SIEMENS one
Ram thermal elongation
compensation

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
SMTCL PBC130rp Powerful CNC Horizontal Milling And Boring Machine CNC Boring Milling Machine 9
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:

SMTCL PBC130rp Powerful CNC Horizontal Milling And Boring Machine CNC Boring Milling Machine 10

Exhibition:

SMTCL PBC130rp Powerful CNC Horizontal Milling And Boring Machine CNC Boring Milling Machine 11

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
