1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe

ブランド名: HD
モデル番号: CW61125
原産地: 中国
認定: CE ISO
最低注文数量: 1セット
価格: 交渉可能
供給能力: 月額50セット
タグ

CDE-Aの慣習的な旋盤機械

横の慣習的な旋盤機械

手動金属の回転旋盤機械

製品詳細

ブランド: HD タイプ: CW61125
製品名: 重い手動回転機 ベッド上の最大振幅: 1250mm
車両の上での最大振幅: 900mm ベッドの幅: 970mm
作業部品の最大長さ: 1000mm-15000mm 紡錘の腔線径・山径: ф130mm
ハイライト

Guide Rall Width Of 970mm

,

Max.length of wordpiece 20m

,

Spindle bore 130mm

製品説明

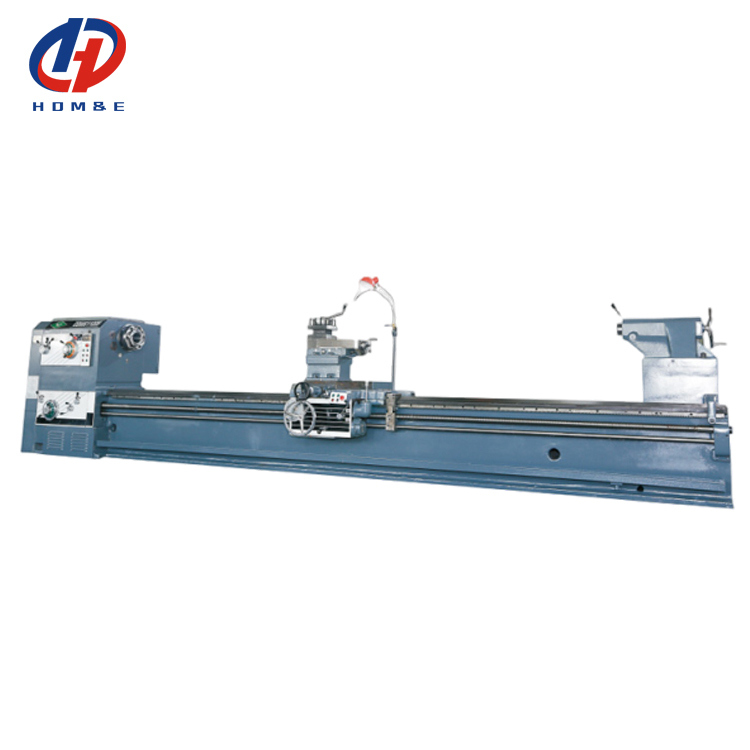

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 0

Product Description:

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe

Features of this machine: This machine tool is a regular horizontal lathe, which adopts advanced processing and assembly technology, highprecision, good stablity, high rigidity, high speed, large through-hole diameter, and wide range of use. lt is designed for turing blackmetal, non-ferrous metal, and some non-metalic material parts with hard alloy and hich-speed steel cuting tools. This machine toois suitable for rough and fine machining of various complex rotary surfaces, and can also perform cuting, boring, threading and other machining.

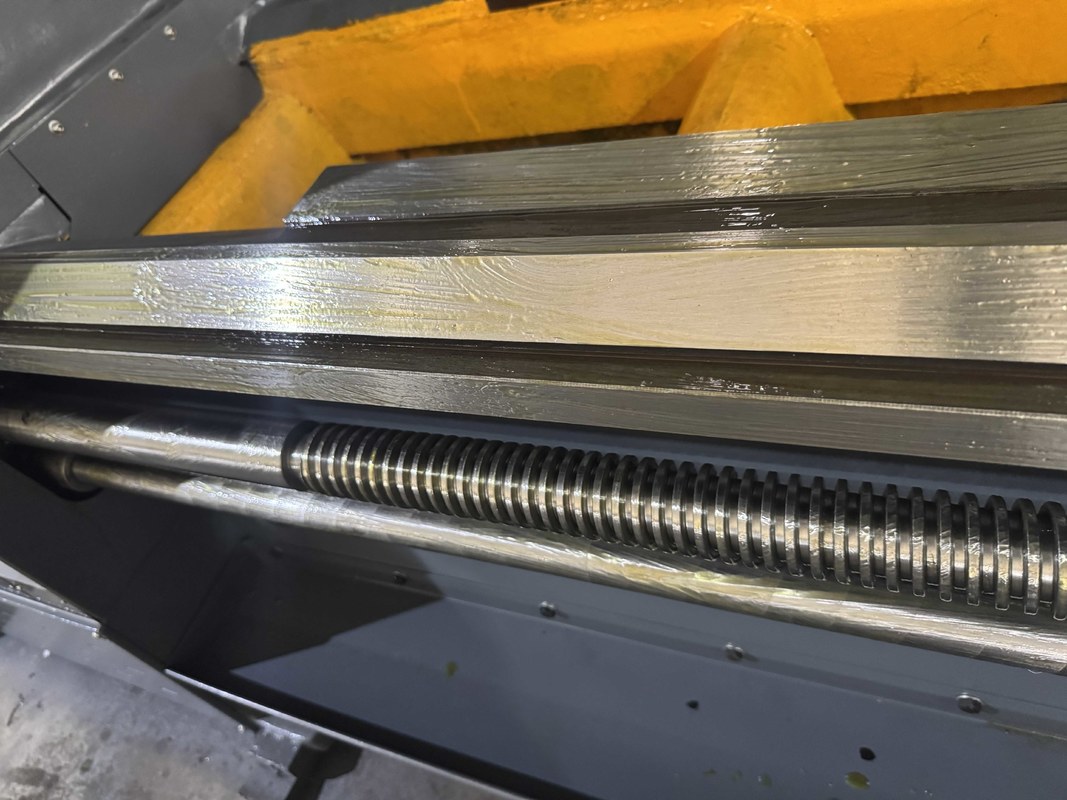

The main structure of this machine tool is a solid loor type bed body, plastic coated guide rall surace, good wear resistance, and guide rallwidth of 970mm. The guide rall adopts medium frequency Quenching, processing length can reach up to 20 meters. The feed adopts theprinciple of mechanicaltransmission.

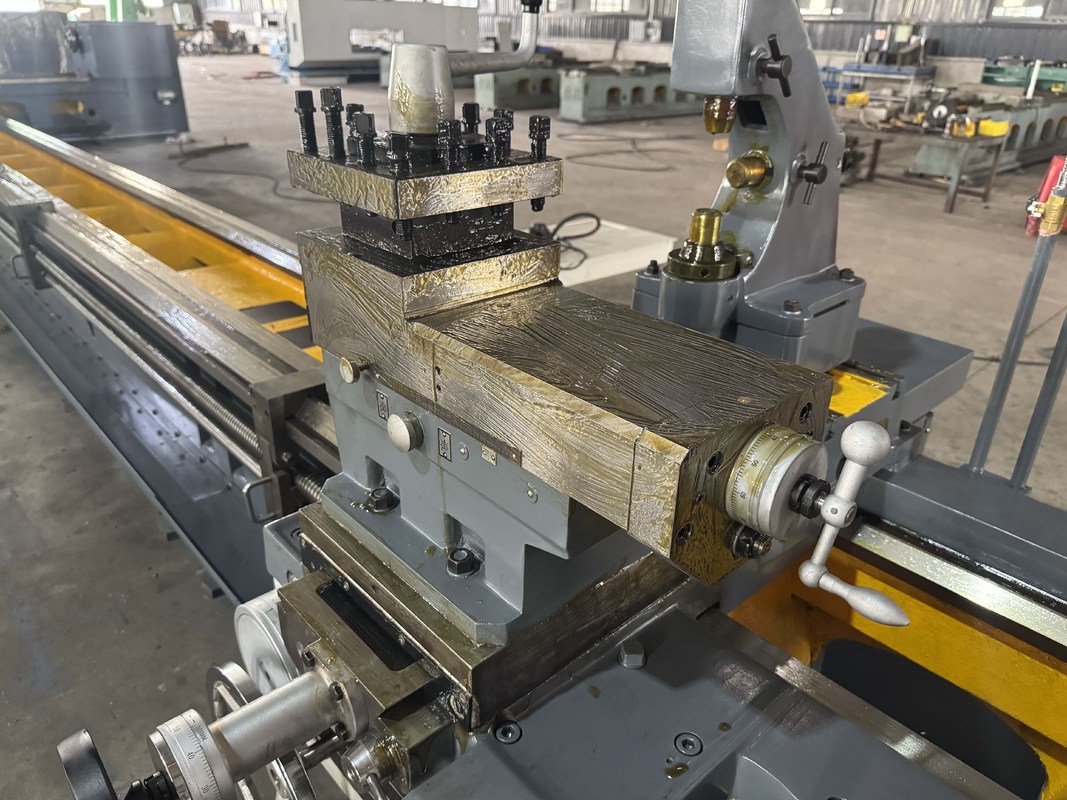

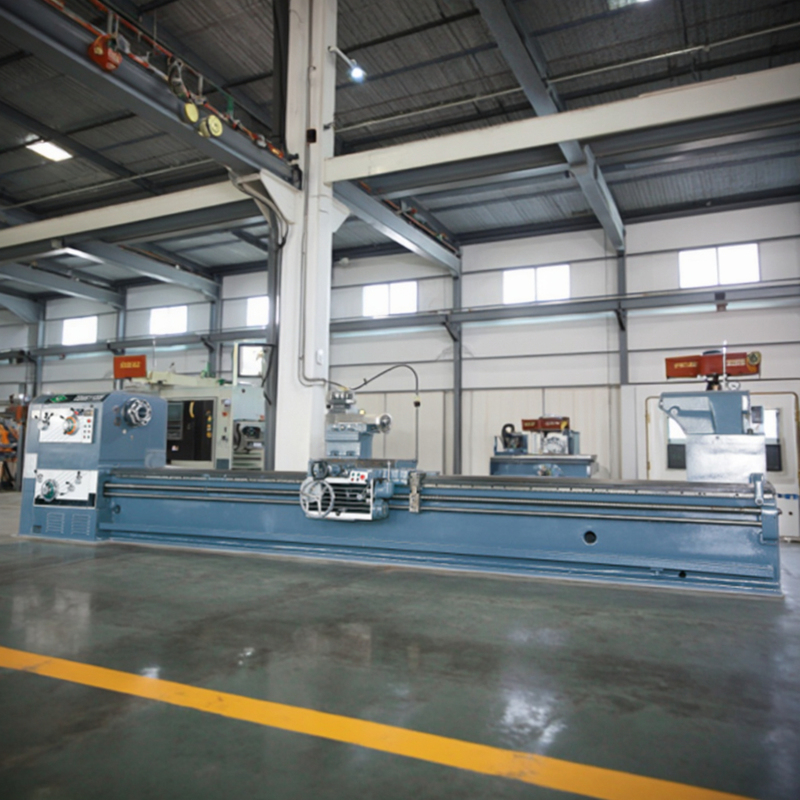

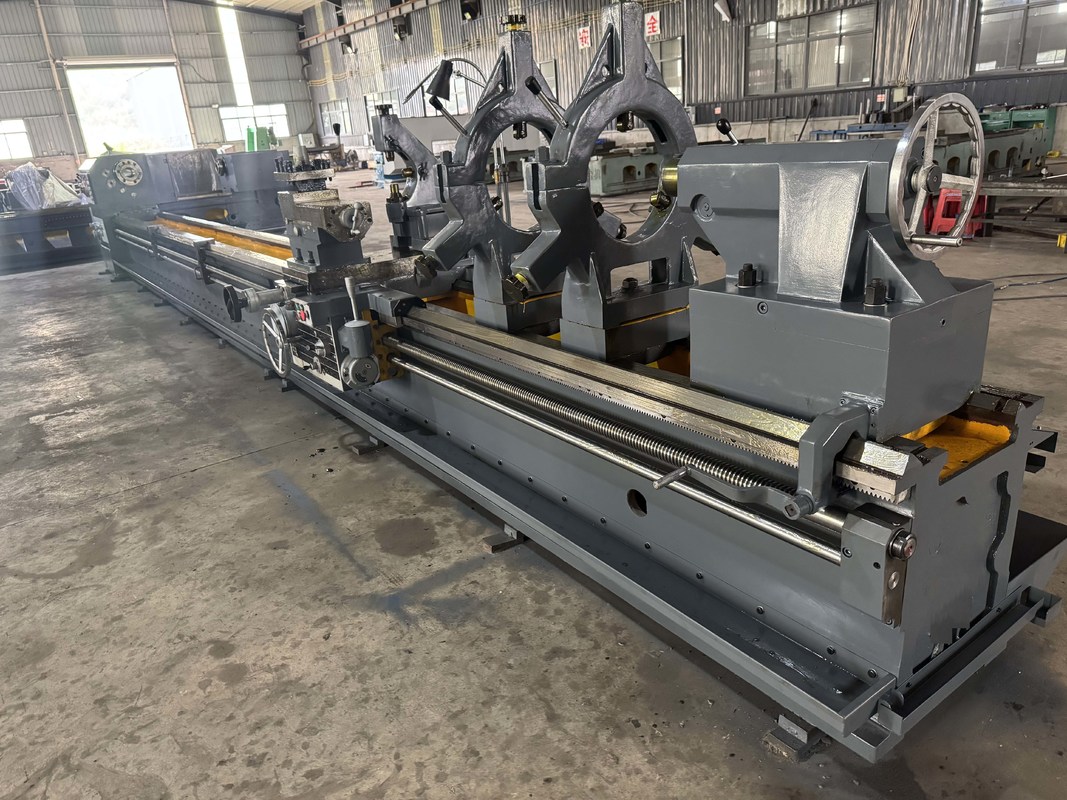

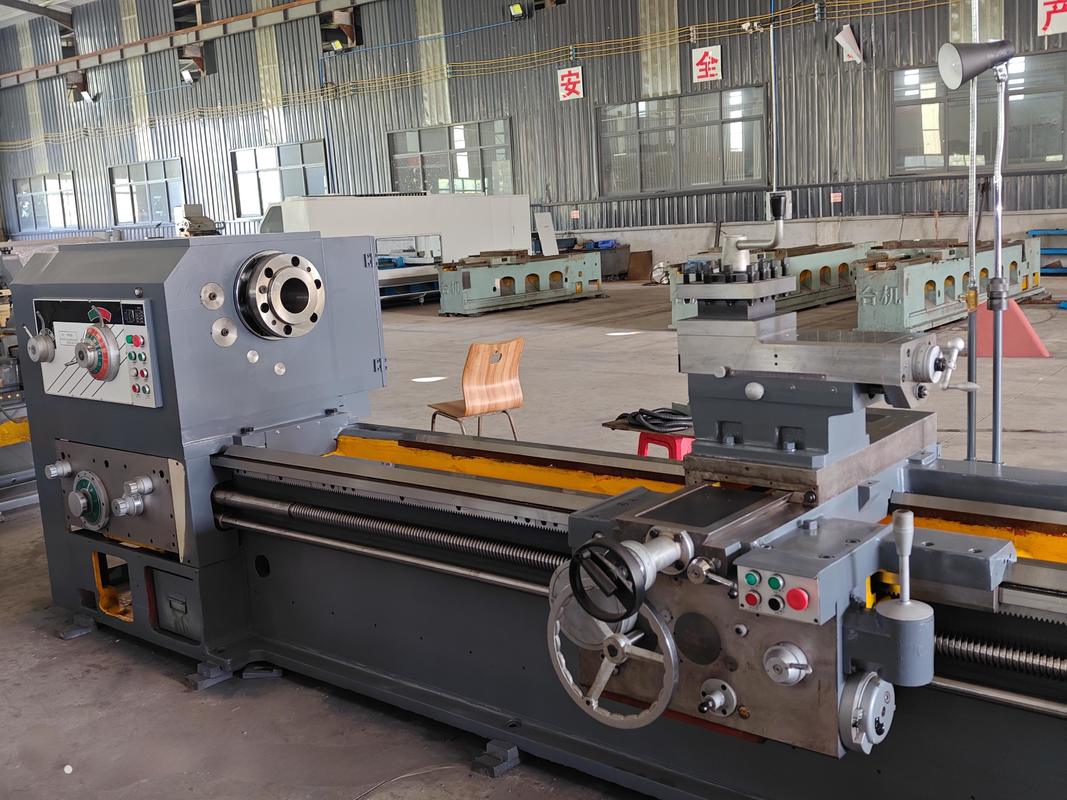

Product Details:

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 1

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 21-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 3

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 41-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 5

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 61-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 7

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 81-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 9

Product Paramenters:

Project
Main parameter
Unit
CW61125



Plus work fan around
Max.swing over bed
mm
1250
Max.swing over carriage
mm
900
Max.length of wordpiece
mm
1000/1500/2000/3000/4000/5000/6000/8000/10000/12000/15000
Max.cutting length
mm
850/1350/1850/2850/3850/4850/5850/6850/7850/9850/11850/14850
Two top max. weight bearing capabilities
kg
10000(15000)




Spindle
Spindle bore
mm
130
Taper hole in spindle
mm
1:20(140 Metric)
Main hole in spindle
ISO
A2-15
Diameter of the front bearing position of the spindle
mm
220
Number of types of spindle rotation and rotational speed
r/min
21 kinds
3.15-315
Number of spindle reversals and rotational speed
r/min
21 kinds
5-400
Power of main motor
kw
22(30)
Manual chuck diameter
mm
1000


Bed structure
Width of bed
mm
970
Bed structure
mm
Whole floor bed frame
Lateral feed
mm
730
Vertical feed
mm
1000-15000
Rapid horizontal/vertical movement
m/min
4/8







Enter to fanaround
Longitudinal feedes 64 Kinds
mm/(in/r)
0.1~12
Transverse feeds 64kinds
mm/(in/r)
0.05~6
64 feed rates on the upper tool rest
mm/(in/r)
0.025-3
Metric threads 56 kinds
mm
1~240
Whitworth threads 56kinds
tpi
30-1/4
Module threads 53 Kinds
mm
0.5~60
Diametral threads 24 kinds
D.P.
60-0.5
The ratio of the feed rate of the upper tool holder to the longitudinal feed rate
mm
1/4
Machine tool screw pitch
mm
12
Fast motor power
kw
1.5


Tailseat
Diameter of tailstock sleeve
mm
160(220)
Tail socket travel
mm
300
Tailstock sleeve taper hole
mm
Morse 20
Top socker taper(metric)
metric
Number 6






Tool carrier
Knife holder form
type
vertical 4 station
Cutting tool cross-sectional dimensions
type
45×45
Rotation angle of knife holder

±90°
Max. lateral travel of the lower knife holder
mm
500
Max. lateral travel of upper knife holder
mm
300
Quick vertical/horizontal movement speed of the tool holder
mm
3740/1870
Quick movement speed of small knife holder
mm/min
935
Cooling pump motor power
mm/min
0.125



Inspection items
Processing accuracy
kw
IT6/IT7
Processing roundness
level
0.008
Processing workpiece cylindricity
mm
0.03/300
Processing workpiece flatness
mm
0.033/500
Roughness
mm
Ra1.6
Spindle end face
mm
0.008
Machine tool standard accessories: spindle and tail frame top sleeve: Φ1000 four jaw chuck: Adjusting pad iron; Anchor bolt; Cool the water tank.
Note:3000mm and above 3000mm with 50-600mm center frame;Φ50-250mm tool holder

Optional accessories:Φ1250 four jaw chuck:Φ250-800mm center frame

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 10
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 11

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
