Name: SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center
Brand: Shanghai HD ME Tech Co., Ltd.
SKU: T5.2〜500Q
Availability: InStock

家 > 製品 > CNCの旋盤機械 >

SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center

Pump Rotor Shaft Processing

CNC Turning Center

起源の場所:

中国

ブランド名:

SMTCL

証明:

CE ISO certification

モデル番号:

T5.2〜500Q

連絡ください

引金を求めてください

製品詳細

ブランド名:

SMTCL

モデル番号:

T5.2-500Qm

CNC制御システム:

GSK/FANUC/SIEMENS

CNCかどうか:

CNC

キーワード:

斜面床回転回転機械

マックス。ベッドの上を揺れます:

Φ560

マックススライドを回す:

Φ350

ターンした長さ:

500mm

移動 (X軸):

200mm

移動 (Z軸):

560 mm

X/Z 速走:

20m/min

マックス。スピンドル速度:

4500 r.p.m

ツール・ポスト・ステーション:

支払いと送料の条件

最小注文数量

パッケージの詳細

木製のケース缶バッジその他の海上用品

受渡し時間

45～60日

支払条件

T/T,L/C,ウェスタン・ユニオン

供給の能力

月額50セット

SMTCL HTC63H Fanuc Double Guide Rails High Precision Slant Bed CNC Lathe

最高の価格を入手する

ビデオ

SMTCL HTC80H High Precision12-Station Horizontal Servo Tool Carriage Heavy CNC lathe

最高の価格を入手する

SMTCL High Rigidity Heavy CNC Lathe HTC80S Hard Rail Structure CNC Lathe

最高の価格を入手する

斜面床 CNC lathes HTC63Q 最大切断長 3000mm 重量切断スピンドル CNC水平 lathes

最高の価格を入手する

連絡ください

+8613916455787

sales@huidijd.com

86-021-61195255

今連絡してください

製品説明

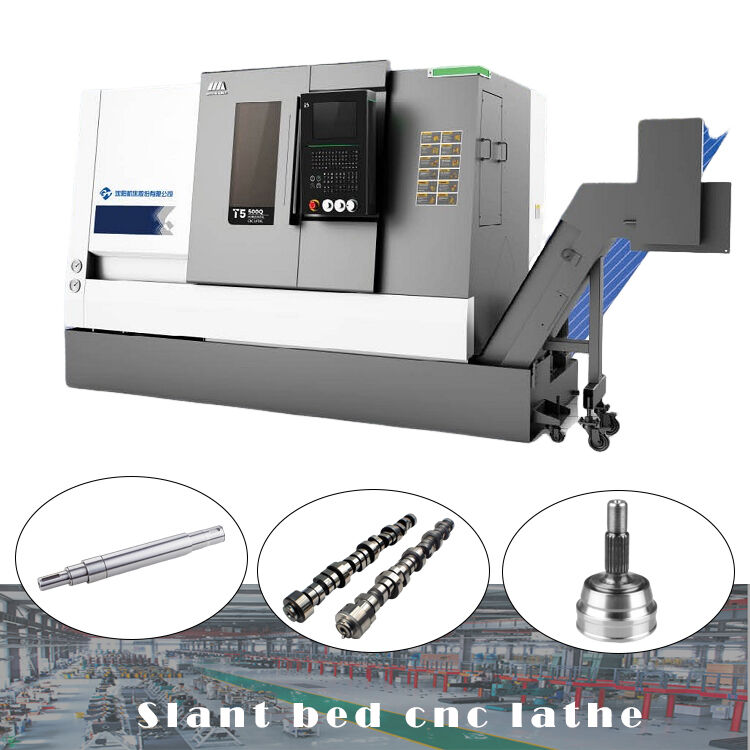

SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center 0

Product Description:

SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center

T5.2-500Q series horizontal CNC Turning Center, combining intelligent control technology and advanced manufacturing technology, has high precision, high efficiency and high cutting rigidity. The finite element analysis software is used to optimize the design, analyze the distribution of stress points, reduce the deformation of parts, and achieve the optimal structure of the whole machine. The main castings are all made of high-strength cast iron materials, which ensures the minimization of vibration during the cutting process and improves the machining accuracy and cutting stability.

Product Features:

1,High Precision

♦ C3 pre-drawn lead screw

♦ Error compensation technology

♦ Process standard quantification

2,High Efficiency

♦ Two axes high and fast moving speed

♦ Split servo tail

♦ High efficiency servo cutter tower

3,High Rigidity

♦ High-quality cast iron bed and other key castings

♦ Large span double row cylindrical roller spindle bearing

♦Anti-bending saddle structure

Product Details:

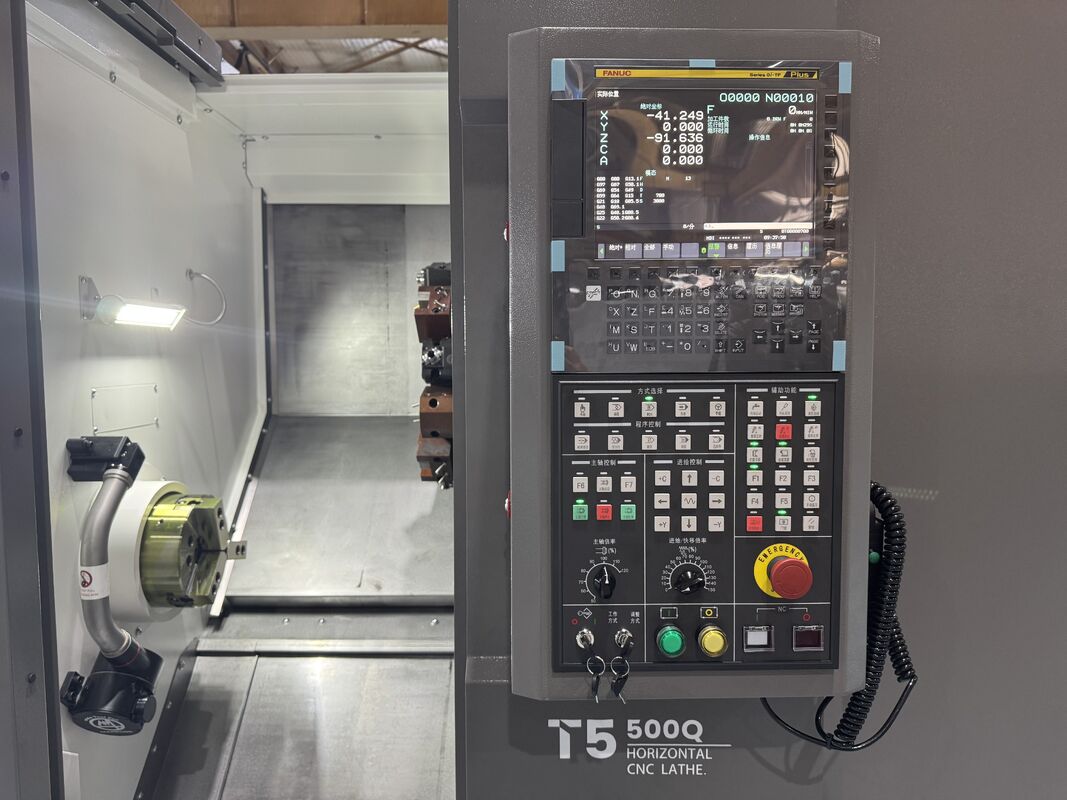

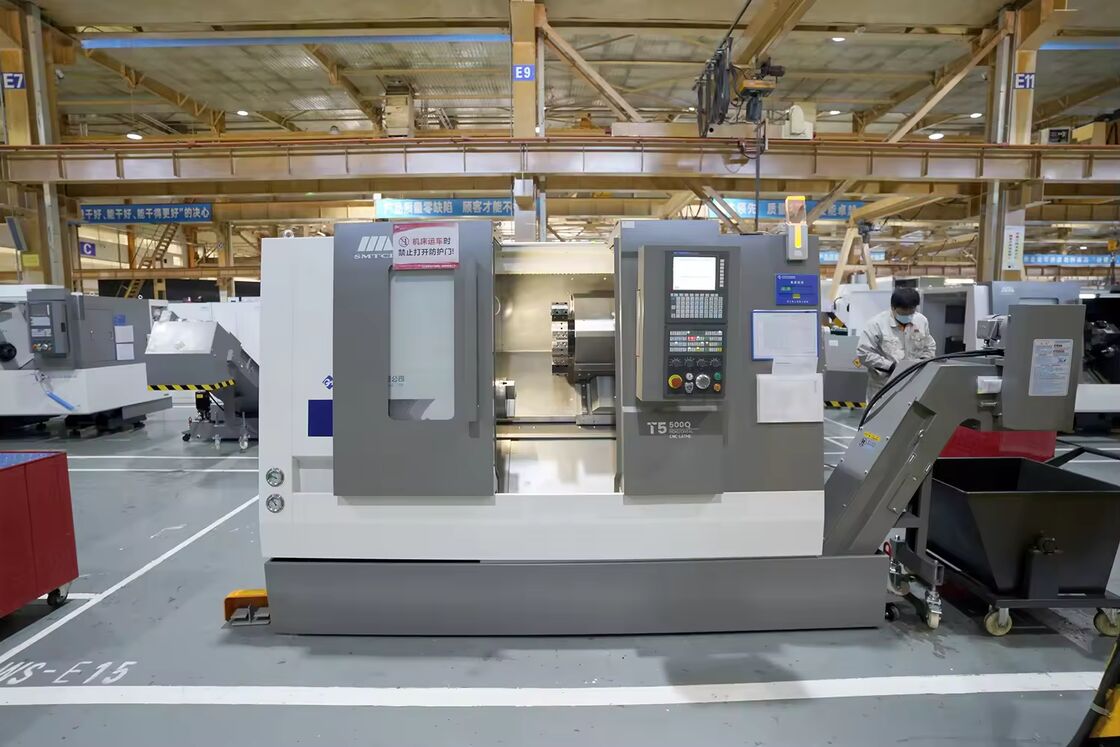

SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center 2

Product Paramenters:

Item		Unit	T5-500Qm
Max. turning diameter		mm	280
Max. turning length		mm	450
Max.swing diameter over bed		mm	Φ560
Max.swing diameter over cross slide		mm	Φ350

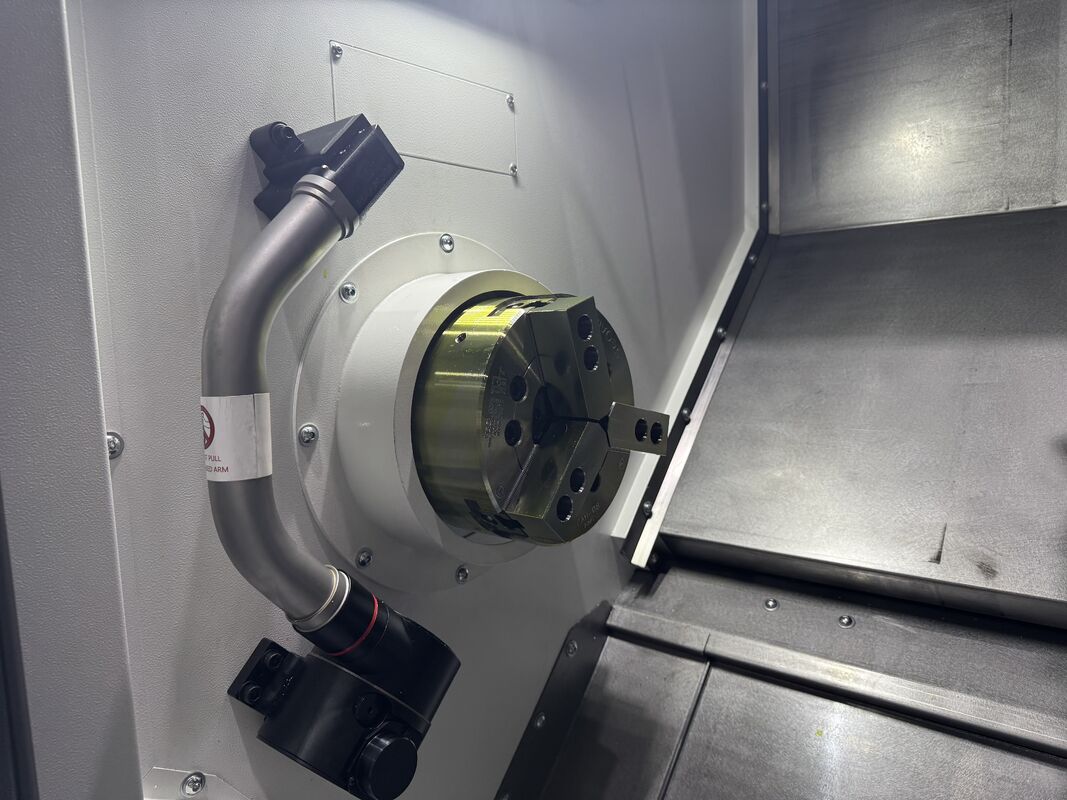

Spindle	Type of spindle nose		A2-6
	Inner diameter of front bearing	mm	Φ100
	Taper of spindle bore		1:20；Φ70
	Spindle bore	mm	Φ65
	Max. through bar diameter	mm	Φ50
	Standard chuck diameter	inch	8
	Max. spindle speed	r/min	4500
	Spindle rated torque	Nm	130
	Max. spindle torque	Nm	230
	Main motor output power continuous /30 minutes	kW	11/15
Two axis	Rapid traverse of X/Z axis	m/min	30
	X axis travel	mm	170
	Z axis travel	mm	560

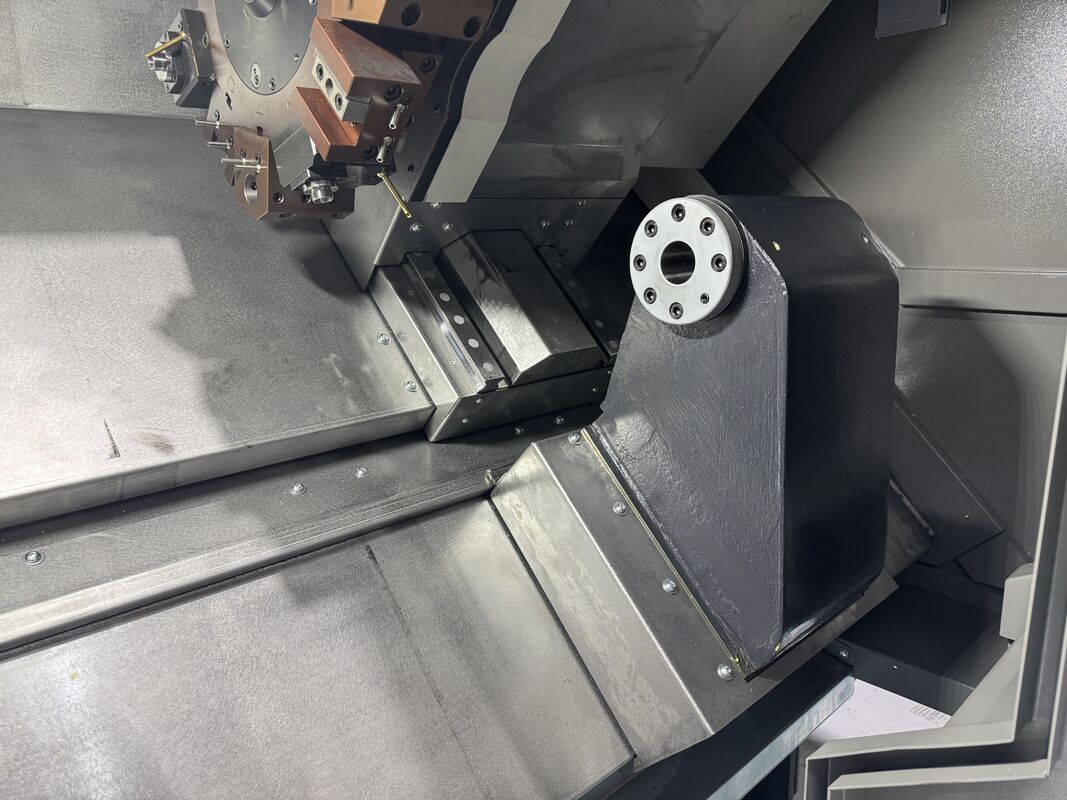

Tailstock	Tailstock travel	mm	500(Servo drive)
Tailstock	Tailstock quill taper	Morse	MT-5
Turret	Turret form		Horizontal 12 -station servo powered tool holder
	Center height of turret	mm	80
	Turret rotation repeat positioning accuracy	Sec.	±1.6
	Whether the cutter can be selected nearby		yes
	End face tool holder	mm	25×25
	Boring tool holder	mm	Φ40
	Reduction sleeve	mm	f32
Other	Distance from spindle center to bed bottom	mm	1015
	Machine net weight	kg	4200
	Total power supply capacity	kVA	35
	Overall dimensions (Length X width X height)	mm	2750×1890×1900

Industry application:
SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center 6

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!O

Our Factory:

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
